SSRA2 Walkboard System for Standing Seam Metal Roofs

SSRA2 Non-Penetrating Walkboard System for Standing Seam Roofs

I Already Have 2 Standing Seam Roof Anchors For Mounting

$849.99 CAD

1/4

SSRA2 Non-Penetrating Walkboard System for Standing Seam Roofs

$849.99 CAD

SSRA2 Adjustable Roof Jack Adapters for Standing Seam Roofs – Canada

Ships from Canada • Non-Penetrating Walkboard Support • SSRA1 Compatible • No Duties

Canada-Stocked Roof Jack Adapters — SSRA2 for Standing Seam Roofs

The SSRA2 Adjustable Roof Jack Adapter converts SSRA1 standing seam anchors into safe, adjustable walkboard supports—without roof penetrations. Installed as a pair, SSRA2 adapters support 10-foot, full-thickness 2×10 wood walkboards to give crews stable footing on steep standing seam roofs while helping protect roof finishes and warranties. Stocked and shipped from within Canada with fast delivery, no duties, and no border delays.

🧱 Converts SSRA1 to Walkboard
📐 Pitch + Seam Adjustable
🛠️ Non-Penetrating Setup
🇨🇦 Ships from Canada (No Duties)

View Specs Confirm Compatibility / Pro Pack Options

Need help confirming seam fit or crew setup? Call (437) 475-2066 — we’ll help match SSRA1 anchors + SSRA2 roof jacks for your panels.

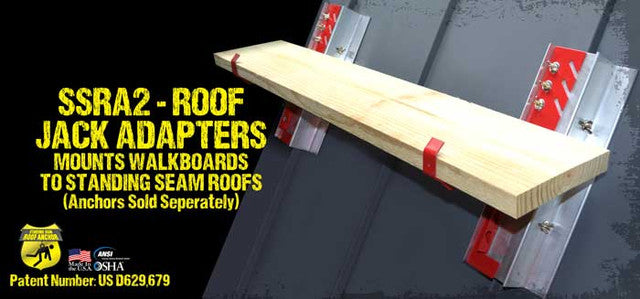

Turn SSRA1 Seam Anchors into Adjustable Walkboard Supports

The SSRA2 Adjustable Roof Jack Adapter is designed to mount directly on SSRA1 standing seam roof anchors, converting a seam anchor into a 10-foot walkboard support for steep standing seam applications.

Traditional walkboard systems often require roof penetrations, heavy brackets, and expensive hardware. SSRA2 simplifies the setup: crews get a stable, level walking platform, while building owners avoid unnecessary penetrations that can compromise roof finishes or warranties.

Ideal For

Standing seam roofing contractors needing safe walkboard access
Steep slope service work (repairs, maintenance, inspections)
Jobsites where penetrations are not allowed (warranty-sensitive roofs)
Crews running SSRA1 systems who want walkboards + tie-off flexibility

Want us to confirm your seam profile? Send a panel photo + seam dimensions and we’ll verify fit.

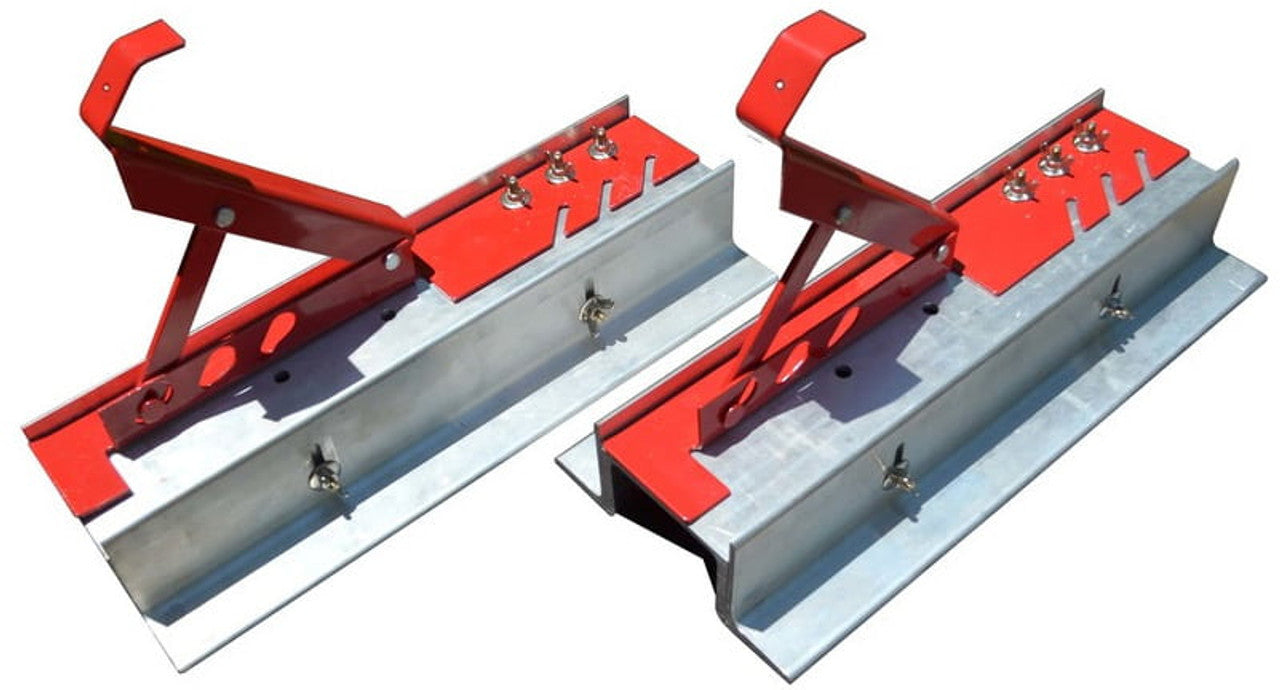

Key Features of the SSRA2 Adjustable Roof Jack Adapter

🧩 Easy SSRA1 Seam Anchor Attachment

Mounts on top of SSRA1 anchors with two bolts—turning a seam anchor into a walkboard support.

Fast install: Attach SSRA2 directly to SSRA1
System expansion: Part of the SSRA modular roof safety approach
Non-penetrating: Supports access without drilling the roof

📐 Adjusts for Roof Pitch + Seam Height

Built to create a stable, level walkboard surface across steep panels.

Pitch range: 6:12 to 12:12
Seam height: 1" to 3"
Stability: Padded adjustable side feet help stabilize at the seam

🛡️ Heavy-Duty, Lightweight Construction

Designed for jobsite durability and fast repositioning.

Material: 6061-T6 aluminum
Hardware: Stainless steel fasteners
Benefit: Corrosion resistant + crew-friendly handling

Installation Guide (Walkboard Setup)

For a stable walkboard platform, SSRA2 adapters are installed as a pair on SSRA1 seam anchors. Always follow manufacturer instructions and jobsite fall protection requirements.

Step-by-Step

Install two SSRA1 seam anchors (without D-rings), spaced no more than 8 feet apart.
Attach one SSRA2 adapter on top of each SSRA1 anchor using the two-bolt connection.
Place a full-thickness 2×10 wood walkboard across both SSRA2 roof jacks.
Secure the walkboard using wood screws through the face of each bracket (per instructions).

Need a full system recommendation (anchors + lifeline + walkboards)? Tell us your crew size, roof pitch, and seam dimensions.

A Cost-Effective Walkboard Solution for Standing Seam Roofing Contractors

Comparable walkboard systems can cost thousands and serve only one purpose. With SSRA2 + SSRA1, crews can build a versatile standing seam safety setup that supports tie-offs, horizontal lifelines, and walkboard platforms—at a fraction of the cost of traditional solutions.

Want a crew bundle? Ask about Roof Jack Pro Pack and Ultimate Pro Pack options.

Technical Specifications

Product	SSRA2 Adjustable Roof Jack Adapter (Pair)
Purpose	Converts SSRA1 seam anchors into adjustable walkboard supports (non-penetrating)
Compatibility	Mounts to SSRA1 standing seam anchors (two-bolt attachment)
Walkboard	Supports 10-ft, full-thickness 2×10 wood walkboards (installed as a pair)
Pitch Range	6:12 to 12:12
Seam Height Range	1" to 3"
Construction	6061-T6 aluminum body • Stainless steel hardware • Padded adjustable side feet
Shipping	Ships from Canada • Fast delivery • No duties or border delays

Test Report & Instructions

SSRA2 Roof Jack Adapters were professionally tested at an ISO 17025-accredited materials testing laboratory, confirming compliance with OSHA 1926 safety requirements (per the referenced test documentation). Always follow the manufacturer instructions for installation, use limits, inspection, and jobsite planning.

Request Test Report / Instructions Call (437) 475-2066

SSRA2 Roof Jack Adapter FAQ (Canada)

What does the SSRA2 roof jack adapter do?

SSRA2 adapters mount to SSRA1 standing seam anchors and convert them into adjustable supports for 10-foot 2×10 wood walkboards—providing a stable work platform without roof penetrations.

Are SSRA2 roof jack adapters sold individually or in pairs?

They are sold in pairs for walkboard support. Contact us if you need a single bracket or a crew pack.

What roof pitches and seam heights will SSRA2 accommodate?

The SSRA2 adapter is designed to accommodate roof pitches from 6:12 to 12:12 and seam heights from 1 to 3 inches, helping create a level walkboard surface on steep standing seam panels.

Does this require penetrating the roof?

No. SSRA2 mounts to SSRA1 seam anchors, creating a walkboard support system designed for standing seam roofs without drilling through the panel field.

Does this ship from Canada with no duties?

Yes. This product is Canada-stocked and ships domestically to help avoid duties and border delays.
