SD VentSaver Screw-Down Mounting Plate Kit (Model 12-24) – PBR & Corrugated Roofs
$325.00 CAD
Skip to product information
SD VentSaver Screw-Down Mounting Plate Kit (Model 12-24) – PBR & Corrugated Roofs
$325.00 CAD
Canada Snow Guards · Genuine SnoBlox-Snojax
Canadian stock — Paris, ONCAD pricing · No dutiesManufacturer warrantyMade in the USA
On screw-down metal roofs, vent pipes and chimneys often come up right through the high ribs — leaving nowhere solid to anchor a VentSaver directly behind the pipe. The SD VentSaver Screw-Down Mounting Plate Kit (Model 12-24) fixes that: a 12" × 27" aluminum plate that bridges the ribs and gives you a full, adjustable mounting surface exactly where you need it.

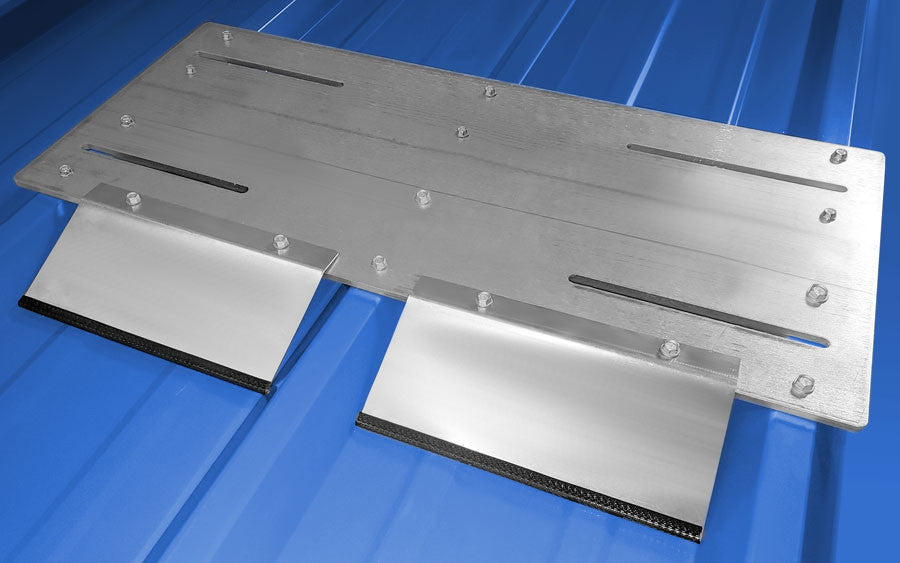

What the SD plate does
The plate spans the panel ribs and fastens through with twelve 3" roofing screws with neoprene washers, sealed underneath with the included NovaFlex all-weather sealant. It lifts the VentSaver above the ribs, adds mounting points, and lets you slide the diverter side-to-side so it sits perfectly behind the pipe — no rib in the way, no compromise on position. A built-in ice ramp protects the base of the pipe and can be field-notched with basic tools to fit between your ribs.

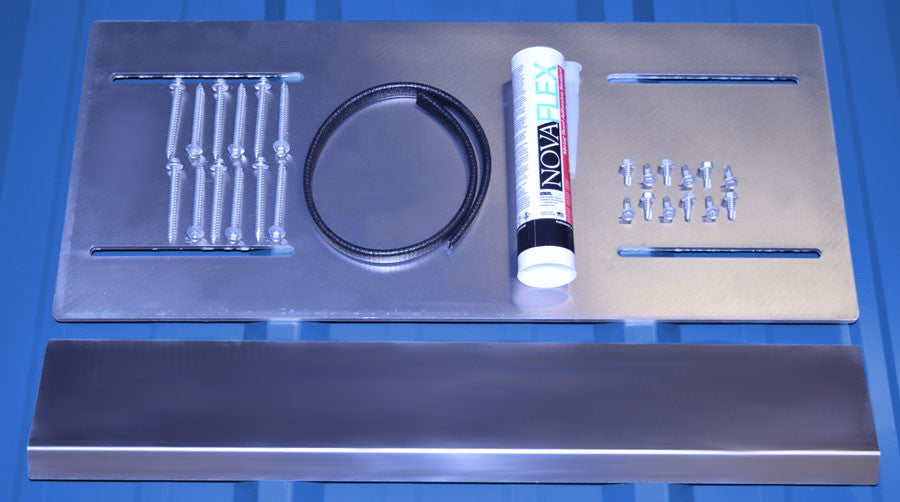

What's in the kit
- 12" × 27" SD VentSaver aluminum plate
- Custom-fit ice ramp with edging strip (notch to fit between ribs)
- 1 tube of NovaFlex all-weather sealant for sealing underneath the plate
- 12 × 1/4-14 × 3" roofing screws with neoprene washers
- 12 × 1/4-14 × 1" Tek screws
- Mounting kit only — VentSaver diverter sold separately
Panel compatibility
Recommended for most PBR / R-panel and 2.67" corrugated exposed-fastener metal panels. Fasten into structural support or wood blocking below the panel for full holding strength. Not sure about your panel? Send a photo with your order and we'll confirm fit before shipping.

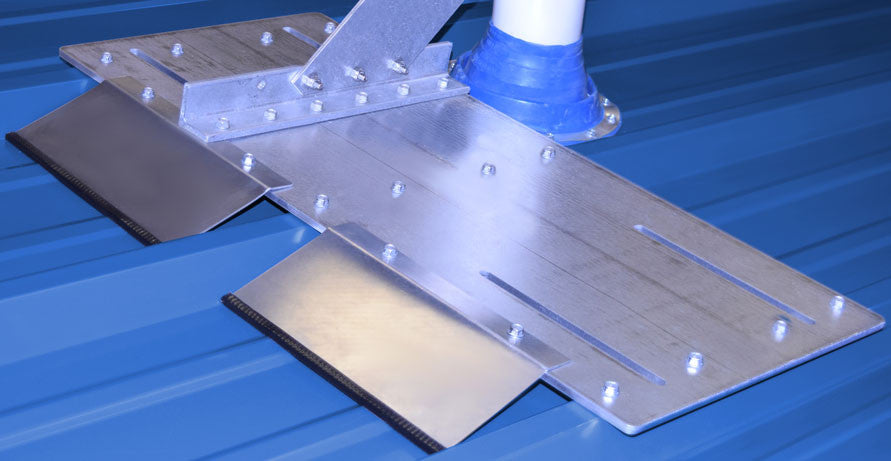

Works with every VentSaver model
- VentSaver EZ — wing kit and height extender install with no modifications on this plate
- VentSaver HD — heavy snow regions, wing kit fits with no wing modifications
- VentSaver Extreme — large chimneys and stove pipes
Specifications
| Use | Adjustable VentSaver mount for screw-down / exposed-fastener metal roofs |
| Model | SD VentSaver Plate 12-24 (PBR and 2.67 corrugated panels) |
| Material | Aluminum plate and ramp · corrosion-resistant coated fasteners — non-corrosive |
| Attachment | 12 × 3" roofing screws w/ neoprene washers into structure, sealed with NovaFlex |
| SKU | SDVS-12-24-KIT-NO (plate kit only, VentSaver not included) |
| Origin & stock | Made in the USA · genuine SnoBlox-Snojax, stocked in Paris, Ontario |
Installation at a glance
- Position the plate just uphill of the pipe or chimney and fasten into purlins, blocking or structure below.
- Seal underneath with the included NovaFlex before final tightening.
- Notch the ice ramp to fit between your panel ribs — hack saw, chop saw or grinder.
- Never use this plate as a step or tie-off point for fall protection.
Why buy from Canada Snow Guards
As the authorized Canadian SnoBlox-Snojax distributor, we sell the genuine article with the manufacturer's warranty behind it. Stock sits in Paris, Ontario and ships across every province and territory in Canadian dollars — no duties, no brokerage, no border surprises — and every order can start with a free engineered layout.
Not sure this plate fits your panels? Send a photo of your roof panel with rib spacing for a free compatibility check — usually back within one business day.
Check my roof compatibility →
