TPO Snow Guard Bracket for SnoBar & ColorBar | Canada Snow Guards

Canada Snow Guards · Genuine SnoBlox-Snojax

The bracket that brings SnoBar® and ColorBar® snow retention to flat and low-slope membrane roofs — TPO, PVC and EPDM — where there's no seam to clamp. Mechanically anchored to the deck and flashed watertight into the membrane, sold individually so you can build a run to your engineered layout.

Built for membrane

Single-ply roofs have no panels or seams to grip, so a clamp won't hold. This bracket fastens down to the structural deck for real holding power against roof-slide snow and ice, then ties into the field sheet with a matching membrane target patch — heat-welded on TPO/PVC, adhered on EPDM — so the finished detail stays sealed and warranty-friendly.

Made for TPO roofs

TPO is the most common single-ply membrane on Canadian flat and low-slope roofs, and it's exactly what this bracket is built for. The base fastens to the structural deck, then a TPO target patch is hot-air-welded over it — the same heat-weld that bonds your field seams — so the bracket becomes a permanent, fully welded part of the TPO system with no exposed fasteners and no compromise to the membrane warranty. The result is a clean, watertight base strong enough to carry a continuous SnoBar® or ColorBar® run on TPO. PVC welds the same way; EPDM uses an adhered patch instead.

Fits

• TPO single-ply membrane roofs (plus PVC and EPDM)
• Flat and low-slope commercial & industrial decks
• SnoBar® and ColorBar® rail systems
• Standing seam metal roofs use clamp-on hardware instead

What's included

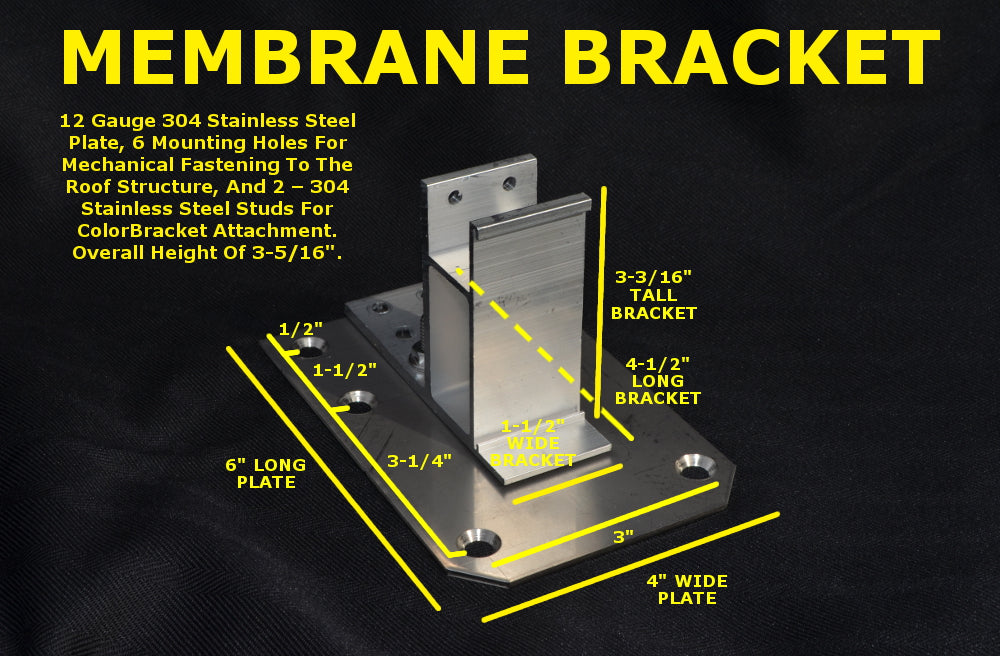

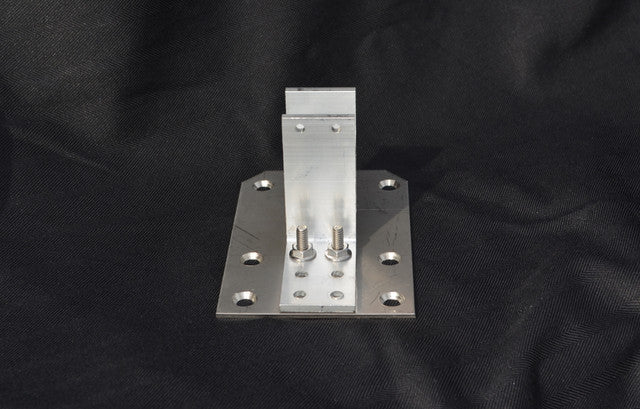

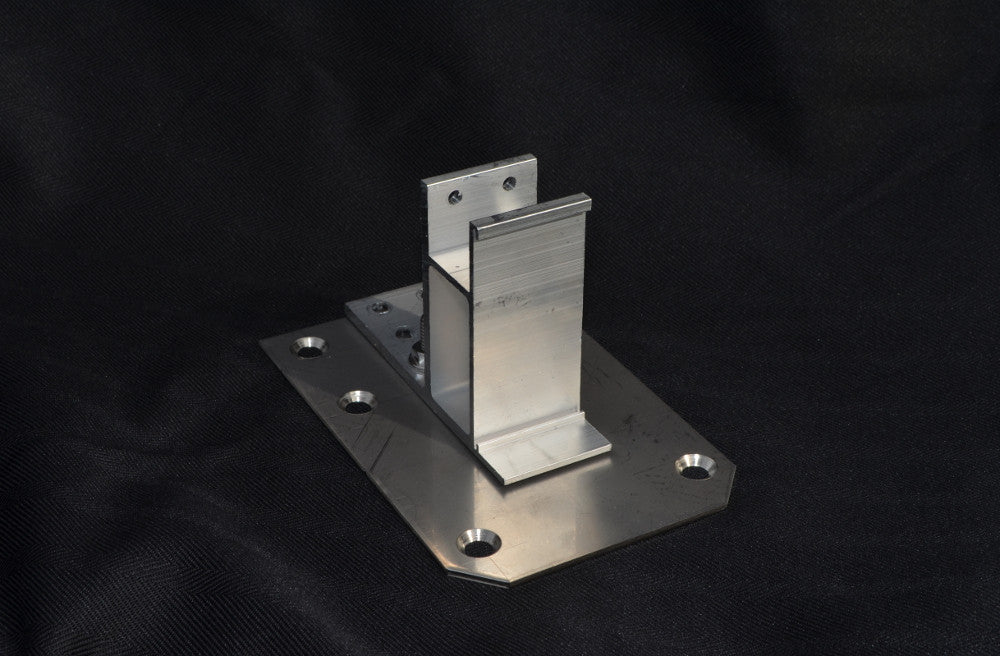

• One membrane mounting bracket for SnoBar / ColorBar
• Rail and membrane target patch sold separately — ask us to spec the full system

Specifications

Installation at a glance

• Bracket spacing comes from your layout — tighter in heavier snow loads.
• Fasten to the deck, then weld or adhere the target patch per your membrane manufacturer's flashing detail.
• Mount the SnoBar or ColorBar rail into the set brackets to finish the run.
• Send your roof details with your quote and we'll size it first.
